The seven-wire, uncoated steel strand is used in pretensioned and post-tensioned prestressed concrete construction such as: Bridges, Ground Anchors, Building Construction, Water Tanks, Hollow Core & Reinforcement Applications...
These steel strands are produced in conformity with the following standards:
| Standard | Type of strand | Nominal diameter | Nominal Tensile Strength. N/mm² | |
|---|---|---|---|---|
| mm | inch | |||
| BS 5896 Relaxation class 2 | 7-wirestandard | 9,30 | 3/8 | 1770 |
| 11,00 | 7/16 | 1770 | ||
| 12,50 | 1/2 | 1770 | ||
| 15,20 | 6/10 | 1670 | ||
| 7-wiresuper | 8,00 | 5/16 | 1860 | |
| 9,60 | 3/8 | 1860 | ||
| 11,30 | 7/16 | 1860 | ||
| 12,90 | 1/2 | 1860 | ||
| 15,70 | 6/10 | 1770 | ||
| 7-wiredrawn | 12,70 | 1/2 | 1860 | |
| 15,20 | 6/10 | 1820 | ||
| 18,00 | 7/10 | 1700 | ||
| ASTM A 416Low relaxation | Grade 1725 | 7,90 | 5/16 | 1725 |
| 9,50 | 3/8 | 1725 | ||
| 11,10 | 7/16 | 1725 | ||
| 12,70 | 1/2 | 1725 | ||
| 15,20 | 6/10 | 1725 | ||
| Grade 1860 | 9,53 | 3/8 | 1860 | |
| 11,11 | 7/16 | 1860 | ||
| 12,70 | 1/2 | 1860 | ||
| 15,24 | 6/10 | 1860 | ||
| 17,78 | 7/10 | 1860 | ||
| EN 10138-3 Low relaxation | Y1770S7 | 9,30 | 3/8 | 1770 |
| 9,60 | 3/8 | 1770 | ||
| 11,00 | 7/16 | 1770 | ||
| 12,50 | 1/2 | 1770 | ||
| 15,90 | 1/2 | 1770 | ||
| 15,20 | 6/10 | 1770 | ||
| 15,70 | 6/10 | 1770 | ||
| 18,00 | 7/10 | 1770 | ||
| Y1860S7 | 9,30 | 3/8 | 1860 | |
| 12,50 | 1/2 | 1860 | ||
| 10,90 | 1/2 | 1860 | ||
| 15,20 | 6/10 | 1860 | ||
| 15,70 | 6/10 | 1860 | ||
Low relaxation strand with maximum relaxation losses of 2,5% after 1000 hours under initial load 70% of actual breaking load.

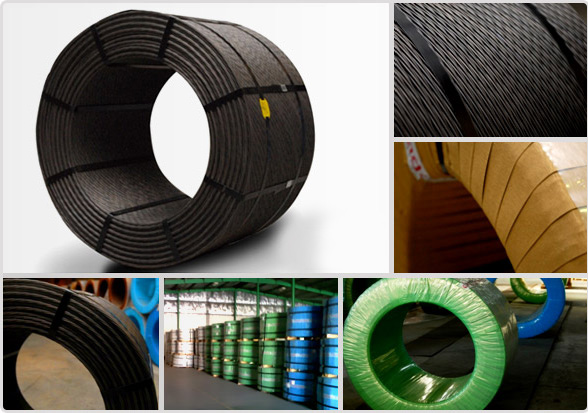

Each coil will be secured with 8 steel straps without core and wrapped with propylene sheets and outer shrink plastic and two water resistant tags having the following information:
Work Order , Diameter, Standard & Grade, Weight
Other wrappings are also possible.
Strands can be supplied oiled under request.
| Width | Inner Diameter | Outer Diameter | Weight |
|---|---|---|---|
| 750 mm | 800 mm | 1500 mm | 4000 kg max |
